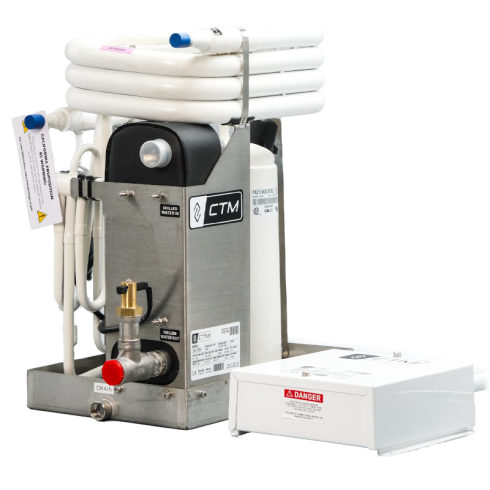

CTM CW-48HS Marine Chiller System 48,000 BTU - 230V - 50/60HZ - R410A w/Soft Start

CTM CW-48HS 48,000 BTU Marine Chiller System with Titanium Coils - 230V, 50/60Hz, R410A - With Soft Start

Introducing the state-of-the-art CTM Marine Chiller System, equipped with titanium coils for ultimate performance and durability.

Designed with efficiency in mind, CTM Marine Chillers ensure consistent cooling in even the harshest of marine environments. Titanium coils provide unparalleled resistance to corrosion, making it the perfect material for your onboard air conditioning solution.

The CTM Marine Chiller unit is a great option for not only new installs but also works as an excellent drop-in replacement option for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Flagship.

CTM has taken over a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — has created a marine chiller system that builds on the performance, durability, and efficiency of the top chillers on the market.

The CTM is fully compatible with top Dometic, Cruisair, and Marine Air chiller systems, using the same DDC circuit board and controls, making replacement of those systems a breeze. With a compact footprint, CTM Marine Chillers are the perfect replacement for MCGX and TWCX chillers. For drop-in replacement recommendations, see the substitution table below.

Whether on a yacht, boat, or other marine vessel, you can count on 48,000 BTUs of powerful, quiet, and efficient cooling with your CTM CW-48HS Marine Chiller System. Experience the peace of mind that comes with investing in a high-quality, durable, and efficient cooling solution.

Every CTM Marine Chiller comes with an industry-standard 2-year warranty*, as well as knowledgeable and attentive customer service from CTM Marine and their extensive dealer network.

Soft Start Included - Maximize Your System’s Efficiency

CTM Marine’s 48,000 BTU Marine Chiller System includes a Soft Start board that is self-optimizing, and reduces start up current by 65-75% of the compressor's LRA (locked-rotor amperage). The Soft Start provides several benefits, including:

- Improves Compressor Performance: Soft starting reduces the initial current surge, which can improve the performance and extend the life of the compressor.

- Reduces Power Consumption: By gradually ramping up the voltage, a soft start reduces the peak power demand and can help reduce overall energy consumption.

- Enhanced Protection: Soft starting helps protect against overloading the electrical system, reducing the risk of damage to the electrical components and ensuring a safe and reliable operation.

- Improved Comfort: Soft starting can reduce the noise and vibrations associated with starting up a compressor, making the operation smoother and more comfortable.

Specifications:

Capacity	48,000 BTU
Voltage	220 / 230 V
Phase	1
Dual Cycle Compressor	50Hz @ 220V / 60Hz @ 230V
Refrigerant Type	R410A
Current Consumption Cool / Heat	14.0 A / 19.0 A
Locked Rotor Amps	42 A
Fuse Max. / Min.	65 A / 40 A
Water In / Out	3/4" / 3/4"
Chill Water In / Out	1.0" / 1.0"
Suggested Water Flow	1000 GPH
Net Weight	150 lbs / 68 kg

Features of the CTM CW-48HS Marine Chiller / 48000 BTUs



Compact Design

Designed to save space on board, making it an ideal choice to replace existing units. Lighter and easier to carry with a sleek and modern appearance.



Metallic Electrical Box

Corrosion resistance electrical box, ensuring that electrical components inside are protected from rust and other forms of corrosion. It also, provides effective grounding and shielding against electromagnetic interference.



Titanium Condenser Coil

The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.



Stainless Steel Frame Base

Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.



Advanced MCC Control Board

The MCC Control Board (Made in USA) is a fully-compatible replacement for the DDC® control board, offered with some Dometic/Marine Air Systems® chillers. MCC is a complete, standalone chiller controller that will reduce the need for manual intervention while increasing efficiency.



Reverse Cycle Heating

Enjoy powerful cooling from your CW Chiller system with the option of heating if needed. Thanks to the reverse cycle it also works as a heat pump, you can switch to heating when temperatures get low without the need of a separate heating system.

CTM Chiller Dimensions

W - Width : 13 in / 332 mm

D - Depth : 17.7 in / 450 mm

H - Height : 19.6 in / 500 mm
