Webasto V64 T BlueCool V-Series Variable Speed Chiller - 8,500 to 64,000 BTU's - 230V

Webasto V64 T BlueCool V-Series Variable Speed Chiller - 8,500 to 64,000 BTU's - 230V

Webasto
Availability:
In Stock - Ship within 1 - 2 Business Days
Rp245,966,293.13
(No reviews yet)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description


Webasto BlueCool V-Series Marine Chiller Unit - 8,500 to 64,000 BTU's - 230V - R410A

Webasto V64 M BlueCool V-Series Chiller Unit 8,500 to 64000 btus

The Webasto BlueCool V-Series chiller system brings innovation to the marine A/C industry with the latest technology for maximum performance in varying weather conditions.

The BlueCool V-Series - with a cooling capacity of up to 77,000 BTU - perfect for boats with three or more independent cabins. This system runs on variable speed compressors controlled with inverter technology during the starting phase and continuously throughout operation. This leads to smooth and silent operation with no electrical starting peak. The self-adapting control logic allows the unit to operate smoothly worldwide in all climates and frequencies. Users can also limit the power demand of the unit to guarantee a cold cabin even in locations where average amperage is limited.

The new V-Series offers a unique new feature with the BlueCool Expert Tool connected via a single USB cable and a PC. On site servicing and remote assistance are now a breeze.

Part Number: 2510597A
Replaces Part Number: WBCL1203003A / WBCL1203003B

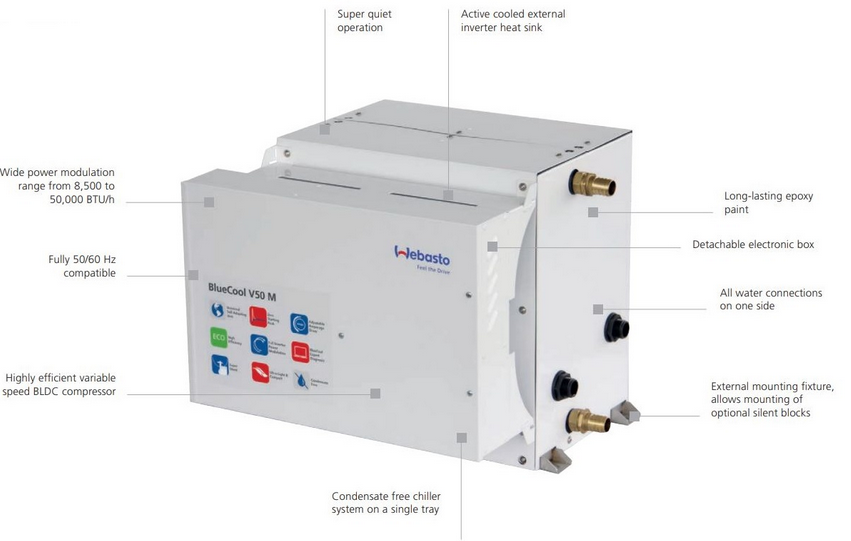

Key Features

  • Large power modulation range: 8,500-64,000 BTU/h (2.5 - 14.6 kW)
  • Variable speed BLDC compressors controlled by inverter technology
  • Zero electrical starting peak
  • Super quiet operation
  • High system availability via dynamic control of HP/LP boundary conditions
  • Adjustable amperage draw
  • Preventive maintenance monitoring system
  • Condensate free operation
  • Easy installation and maintenance
  • Low service and operation costs
  • Light and compact
  • Integrates Webasto’s BlueCool Expert diagnosis and set up tool

Webasto MyTouch Control Display Compatible

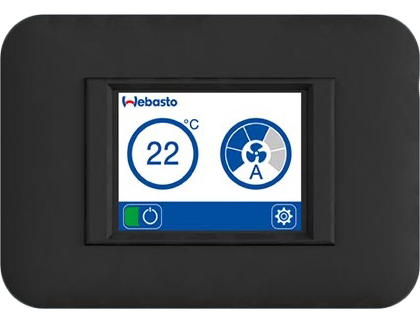

Webasto MyTouch Control Display

  • The BlueCool MyTouch display is the new standard display for all BlueCool A/C Series:
  • Full color, high resolution, interactive 2,4” touch screen
  • Multiple customization options available (design, colors, language, photos, etc.)
  • Protected: full access to system configuration parameters
  • Compatible with Vimar Eikon, Eikon EVO, Plana, Bticino Axolute

Technical Specifications for 2510597A

Part Number 2510597A
Cooling Capacity (BTU/h) 8,500 - 64,000
Heating via reverse cycle integrated Yes
Voltage (V) 230
Frequency (Hz) 50 / 60
Current draw running (A) 2.5 - 23.8
Current draw Start (A) 2.5
Refrigerant charge R410A (g) 892 + 770
Chilled Water Connection (inch / mm) 1 1/4 F BST / 32
Seawater Connection (inch / mm) 1 1/4 F BST / 32
Weight (lbs / kg) 231 / 105

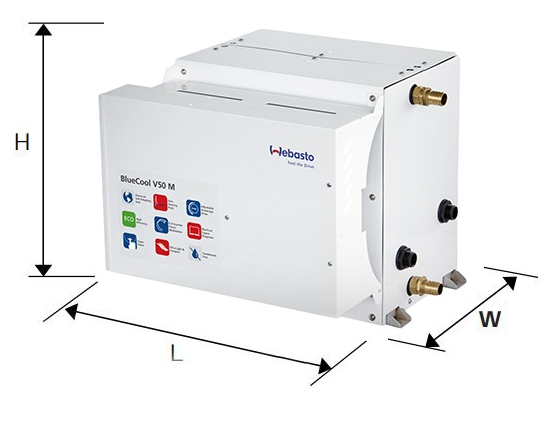

Dimensions

Width (in / mm) 29.5 / 750
Webasto BlueCool V-Series Chiller
Length (in / mm) 29.9 / 760
Height (in / mm) 20.1 / 510
Warranty
2-Year Warranty
